Accessories
Keyboard panel     Keyboard panel Material:   • SPCC cold rolled steel t1.2/14" 2-section slide Surface finish:   • Degreasing, pickling, phosphoric, powder coat Parameter:   • Flexing length: 210mm, Loading capacity: 20Kg

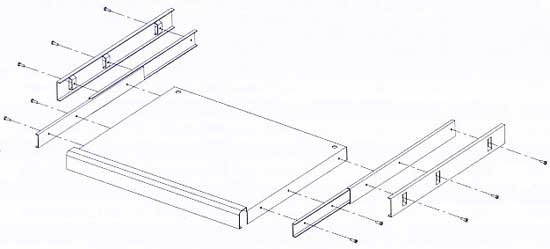

Structure of keyboard panel
	1. Guiding girder 2. 14" 2-section slide 3. Keyboard loading plate
Specification : Definition of color: PJ. . 0:RAL7044      PJ. . 1:RAL9004
Model Number Specification Dimension (mm) Use W D1 D2 PJ.6005.000 60 Keyboard panel 470 350 380 19" installation for 600-depth cabinets PJ.8005.000 80 Keyboard panel 470 350 580 19" installation for 800-depth cabinets PJ.9005.000 90 Keyboard panel 470 350 680 19" installation for 900-depth cabinets PJ.9105.000 100 Keyboard panel 470 350 740 19" installation for 960/1000-depth cabinets PJ.8605.000 60 Extra-width Keyboard panel 670 350 380 27" installation for 600-depth and 800-width cabinets PJ.8805.000 80 Extra-width Keyboard panel 670 350 580 27" installation for 800-depth and 800-width cabinets PJ.8905.000 90 Extra-width Keyboard panel 670 350 680 27" installation for 900-depth and 800-width cabinets PJ.8105.000 100 Extra-width Keyboard panel 670 350 740 27" installation for 960/1000-depth and 800-width cabinets
1U, 2U Metal cable management with cap   Metal cable management with cap Material:   • SPCC cold rolled steel t1.2 Surface finish:   • Degreasing , pickling, phosphoric, powder coat   Standard color:   • RAL9004   • RAL7044
Specification :
Model No. Specification Height (U) PJ.0020.01 1U cable management with cap 1U PJ.0020.02 2U cable management with cap 2U Definition of color: PJ. . 0:RAL:7044      PJ. . 1:RAL:9004 Color: RAL9004 RAL7044	Dimension 1U Metal cable management with cap Dimension 2U Metal cable management with cap
