Accessories
Sliding shelf     Sliding shelf Material:   • SPCC cold rolled steel t1.2/14" 2-section slide Surface finish:   • Degreasing, pickling, phosphoric, powder coat Parameter:   • Flexing length: 210mm, Loading capacity: 20Kg

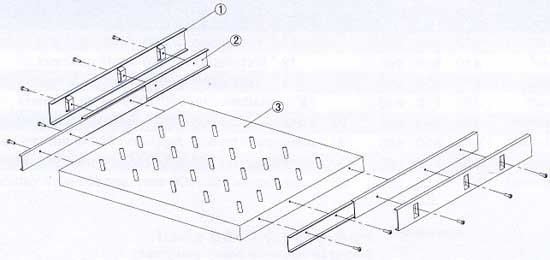

Structure of sliding shelf
	1. Guiding girder 2. 14" 2-section slide 3. Sliding loading plate
Specification : Definition of color: PJ. . 0:RAL7044      PJ. . 1:RAL9004
Model Number Specification Dimension (mm) Use W D1 D2 PJ.6004.000 60 Sliding shelf 470 350 380 19" installation for 600-depth cabinets PJ.8004.000 80 Sliding shelf 470 550 580 19" installation for 800-depth cabinets PJ.9004.000 90 Sliding shelf 470 650 680 19" installation for 900-depth cabinets PJ.9104.000 100 Sliding shelf 470 710 740 19" installation for 960/1000-depth cabinets PJ.8604.000 60 Extra-width Sliding shelf 670 350 380 27" installation for 600-depth and 800-width cabinets PJ.8804.000 80 Extra-width Sliding shelf 670 550 580 27" installation for 800-depth and 800-width cabinets PJ.8904.000 90 Extra-width Sliding shelf 670 650 680 27" installation for 900-depth and 800-width cabinets PJ.8104.000 100 Extra-width Sliding shelf 670 710 740 27" installation for 960/1000-depth and 800-width cabinets
Heavy duty fixed shelf   Castors: Surface finish:   • Orchid Zinc   Dimension
Specification :
Model No. Specification Load (Kg) H Φ PJ.0026.001 2" Heavy duty castor 200 72 50.8 PJ.0026.002 2" light duty castor 80 65 50.8 PJ.0026.003 2" castor with brake 200 72 50.8 PJ.0026.004 2.5" Heavy duty castor 200 84.7 63.5 PJ.0026.005 2.5" castor with brake 200 84.7 63.5
