| Feature: | Function: | |
|

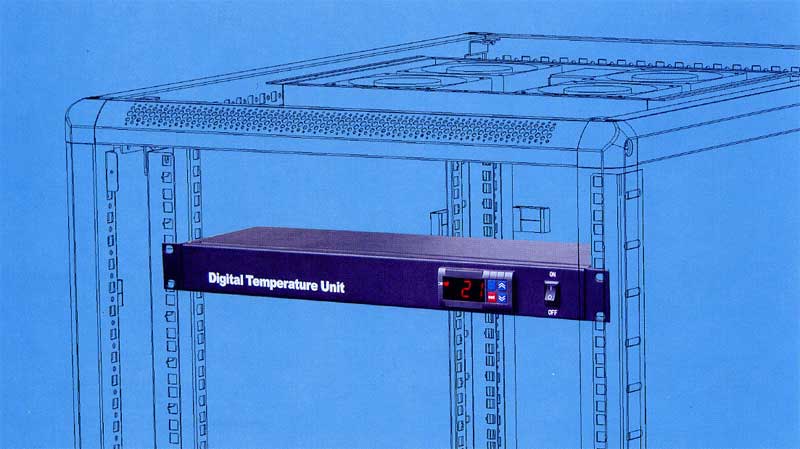

• Simple structure, easy mounting • Easy cabling & operation • Disturbing resistance, reliable performance • 2-way output |
• Adjust cabinet temperature byintelligent control over fan unit Degree of protection: • IP23 |
| S/N | Specification | Parameter |
| 1 | Range | 0°C~50°C |
| 2 | Input | PTC (10KΩ) |
| 3 | Output | 2-way output |
| 4 | Consumption | 3W |
| 5 | Power supply | 220VAC |
| 6 | Accuracy | ±1°C |
| 7 | Display | 2-way 8-section digital pipe, red |
| 8 | Ambient temperature | -10°C~70°C |
| 9 | Maintain temperature | -20°C~80°C |
| 10 | Ambient humidity | ≤85%RH |
| 11 | Mounting | 19" standard |
