TC Digital Temperature Unit |
 |
| |

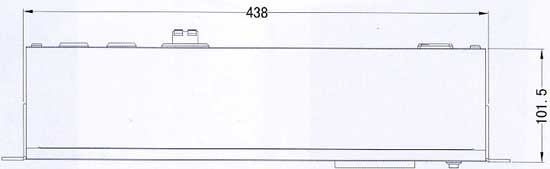

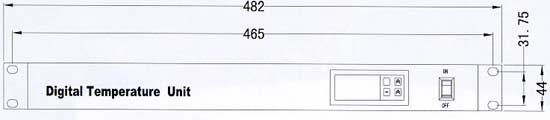

| Dimension |
|

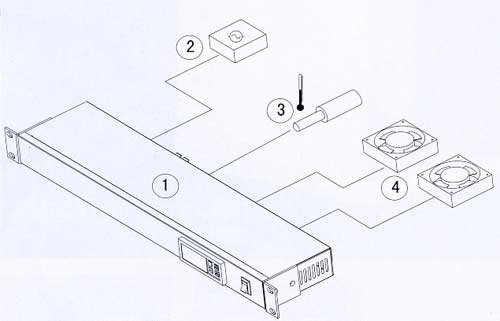

Instruction |
|
1. Temperature controller
2. Power
3. Temperature sensor
4. Fan Unit
|
| |
| Main parts: |
| S/N |
Specification |
Quantity |
Unit |
Material |
Surface finish |
Remark |
| 1 |
Temperature controloer |
1 |
Piece |
--- |
Powder coat |
Cover, bottom and mounting plate |
| 2 |
Wire |
1 |
Piece |
--- |
--- |
--- |
| 3 |
Temperature sensor |
1 |
Piece |
--- |
--- |
1.2 m length |
| 4 |
M6 square screw |
4 |
Piece |
Steel |
Color Zinc |
Accessories |
| 5 |
M6 B-head nut |
4 |
Piece |
Steel |
Color Zinc |
Accessories |
| 6 |
Inner six-angle wrench (D6) |
1 |
Piece |
Steel |
Black |
Accessories |
| 7 |
M4 nut |
8 |
Piece |
Steel |
Black |
Install temperature controller |
|
| |
Model No. SA.0039.0 |
| Definition of color: |
| Model No. |
Color |
| SA.0039.00 |
RAL7044 |
| SA.0039.01 |
RAL9004 |
|
Color: |
| RAL9004 |
RAL7044 |
 |
 |
|
|
| Definition of plugs in Model No. |
| Model No. |
Plug definition |
Voltage/Frequency |
| SA.0039.01 |
China |
 |
220V/50Hz |
| SA.0039.02 |
German |
 |
230V/50Hz |
| SA.0039.03 |
UL |
 |
110V/60Hz |
| SA.0039.04 |
UK |
 |
230V/50Hz |
|
|
|
|
|
