   OR Open Racks

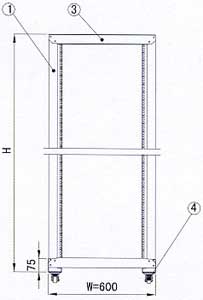

Main structure: Main dimension:

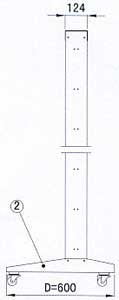

Mounting dimension



Enlarge part C

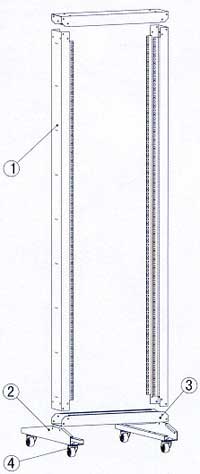

1. Pole 2. Plinth 3. Front and bottom beams 4. Castor
Main parts :
S/N Specification Quantity Unit Material Surface finish Remark
1 Pole 2 Piece SPCC cold rolled steel t1.5 Powder coat ---
2 Plinth 2 Piece SPCC cold rolled steel t2.0 Powder coat ---
3 Front and bottom beam 2 Piece SPCC cold rolled steel t2.0 Powder coat ---
4 2" castor 2 Piece --- --- ---
5 Square screw & nut 10 Set Steel Color Zinc ---
6 Inner six-angle wrench 1 Piece Steel Black ---

Specification :
Model Number Capacity
(U) 		Width
(mm)		 Depth
(mm)		 Height
(mm)		 Packing Dimension
W*D*H		 Volume
(CBM)
OR.6622.90 22 600 600 1119 670*150*1149 0.1155
OR.6632.90 32 600 600 1562 670*150*1592 0.1600
OR.6637.90 37 600 600 1785 670*150*1815 0.1824
OR.6642.90 42 600 600 2007 670*150*2037 0.2047
OR.6647.90 47 600 600 2230 670*150*2260 0.2271

Definition of color:
Model No. Color
OR. . 0 RAL7044
OR. . 1 RAL9004

Color:
RAL6004 RAL7044
