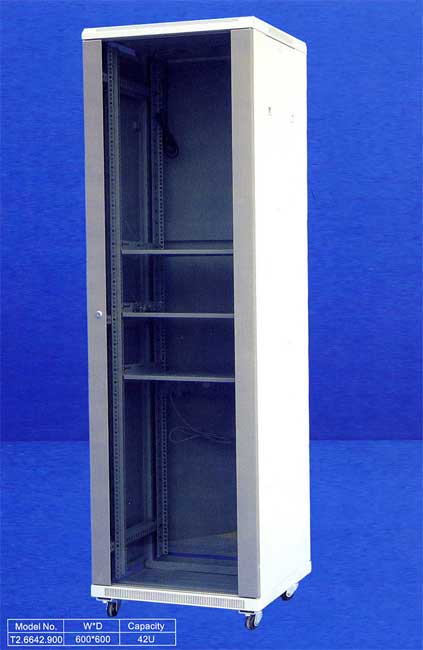

Standard: • Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART 1, DIN41494; PART 7, GB/T3047.2-92 & ETSI standard; Feature: • Exquisite design with precise dimension and craftsmanship; • Tempered glass front door with door border and steel rear door . • Feet and castors are available at the same time. • Several lockable cable entrances on top/bottom plate with adjustable sizes. • Optional plinth enables cabinet to stay in a fixed position, meeting requirements of under-base cable entry/ventilation and prevention. • Efficient cabinets connectors. • Removable side doors, easy to install and maintain. • Around 1/2~2/3 of original assembled volume when disassembled. |
Material: • SPCC cold rolled steel Thickness: mounting rail: 2.0mm Mounting angle: 1.5mm; others: 1.2mm Surface finish: • Degreasing, pickling, phosphoric, powder coat Degree of protection: • IP20 Loading capacity: • Static loading: 500Kg |
