Width 600mm T2 Network Cabinets
Main dimension:

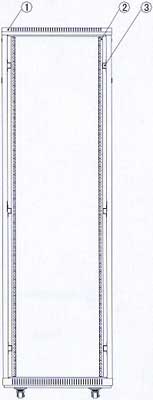

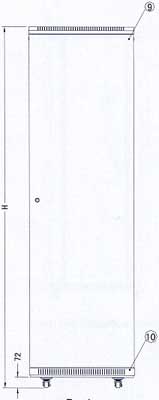

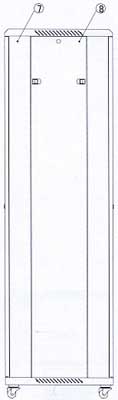

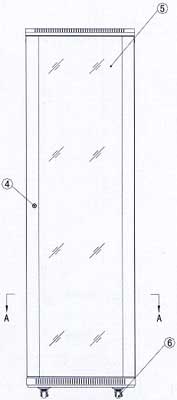

Front (without front door) Front Side Back Mounting dimension Top A-A Section
Main parts :
S/N Specification Quantity Unit Material Surface finish Remark 1 Top cover 1 Piece SPCC cold rolled steel t1.2 Powder coat --- 2 Mounting rail 4 Piece SPCC cold rolled steel t2.0 Powder coat --- 3 Mounting angle 6 Piece SPCC cold rolled steel t1.5 Powder coat 4pcs for lower 32U 4 Small round lock 2 Piece --- Nickel coat With 2 keys 5 Tempered glass front door 1 Piece Toughened glass/ SPCC t1.2 Powder coat --- 6 2" Heavy duty castor 4 Piece --- --- --- 7 Frame 2 Set SPCC cold rolled steel t1.2 Powder coat --- 8 Side door 2 Piece SPCC cold rolled steel t1.2 Powder coat --- 9 Steel rear door 1 Piece SPCC cold rolled steel t1.2 Degreasing, Phpsphoric, Powder coat --- 10 Bottom 1 Piece SPCC cold rolled steel t1.2 Powder coat --- 11 M6 B-head screw 20 Piece Steel Color Zinc 40pcs for above 32U 12 M6 sqare nut 20 Piece Steel Color Zinc 40pcs for above 32U 13 Inner 6-angle wrench 1 Piece Steel Black --- 14 M12 feet 4 Piece --- --- ---
