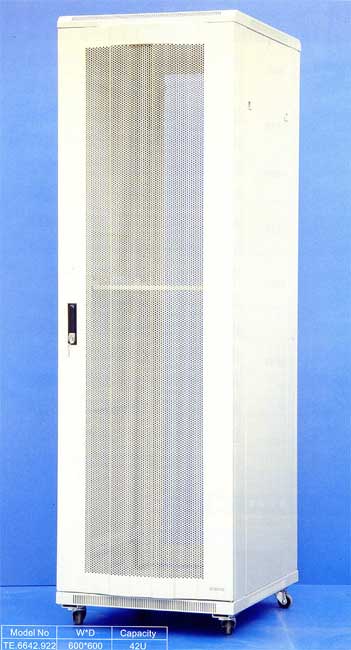

   TD Network Cabinets

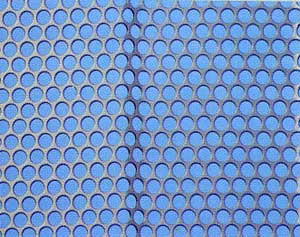

High-densiy vented door enable
protection, ventilation and reliable operation

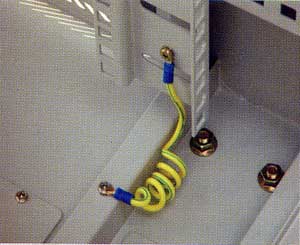

Grounding holes for main parts
Standard:
  • Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART 1,
    DIN41494; PART 7, GB/T3047.2-92 & ETSI standard;

Feature:
  • Arc reticular high-density vented front door & rear door for protection,
    ventilation and reliable operation.
  • Exquisite image with precise dimension and craftsmanship.
  • Lockable cable entrances on top and bottom with adjustable sizes.
  • Optional plinth enables cabinets to stay in a fixed position while meeting
    requirements of under-base wiring/ventilation and rat prevention.
  • Strong cabinet connectors.
  • Spring lock.
Material:
  • SPCC cold rolled steel
    Thickness: mounting rails: 2.0mm
    Mounting angles: 1.5mm; others: 1.2mm
Surface finish:
  • Degreasing, pickling, phosphoric, powder coat
Degree of protection:
  • IP20
Loading capacity:
  • Static loading: 500Kg
