Width 800mm TS/TD/T2 Network Cabinets
|
 |
| |

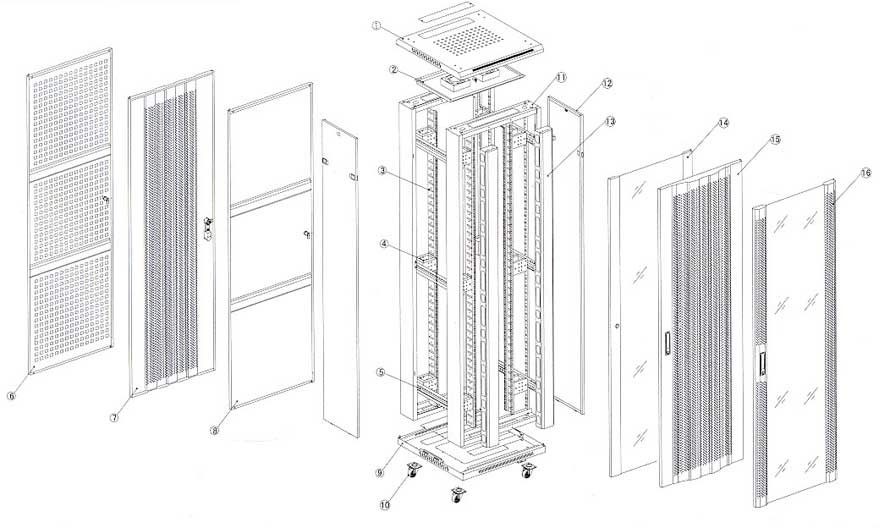

| Structure of width 800mm TS, TD, T2 cabinet |
|
|
1. Front frame 2. Fan unit 3. Mounting rail 4. Connecting plate for cable management slot 5. Mounting angle 6. Rear door with square hole 7. High-density vented rear door 8. Plate rear door (without hole) 9. Bottom frame 10. Castor 11. Frame 12. Side door 13. Cable management slot 14. T2 front door 15. TD front door 16. TS front door
|
| |

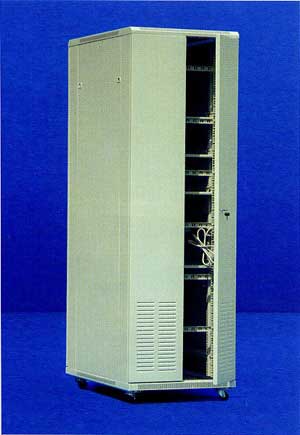

Double section rear door for width 800mm T2 cabinet with fan holes
|
Fan tray
|

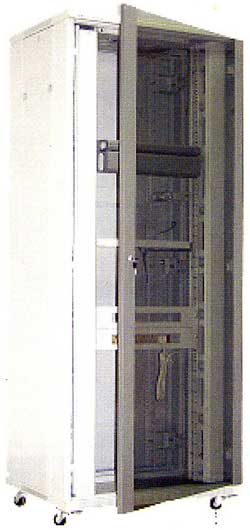

Width 800mm T2 cabinet with metal Cable management slot
|
| |
Fan tray
|
|
|
|
