Width 600mm TS/TD/T2 Network Cabinets

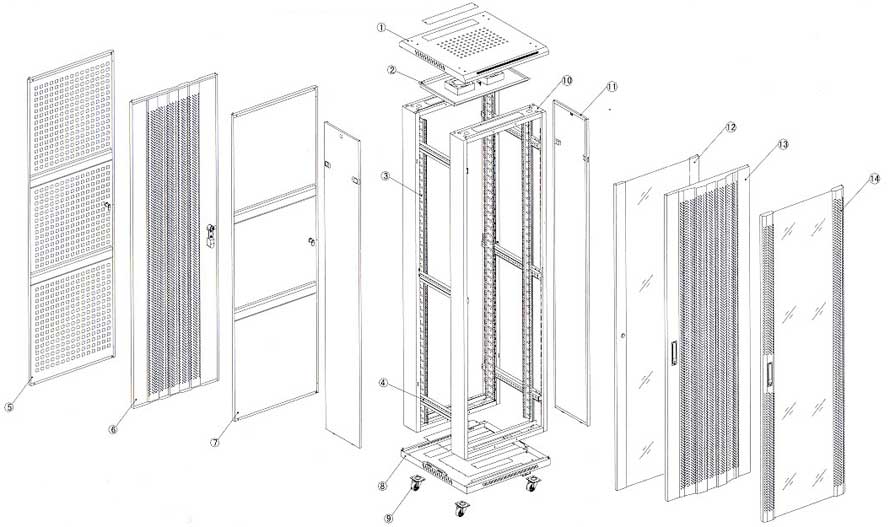

Structure of width 600mm TS, TD, T2 cabinet
1. Front frame   2. Fan unit   3. Mounting rail   4. Mounting angle   5. Rear door with square hole   6. High-density vented rear door   7. Plate rear door without hole   8. Bottom frame   9. Castor   10. Frame   11. Side door   12. T2 front door   13. TD front door   14. TS front door
U marked Mounting rail Earthing tag to earth Adjustable mounting rail & mounting angle 1U / 2U metal cable management with cap Lockable cable entrance Removable front door Shunting ring Optional plinth to meet under-base wiring, ventilation & rat-proof Main parts with earthing tag hole can connect with each other Keyboard with mouse panel
