TE Network Cabinets

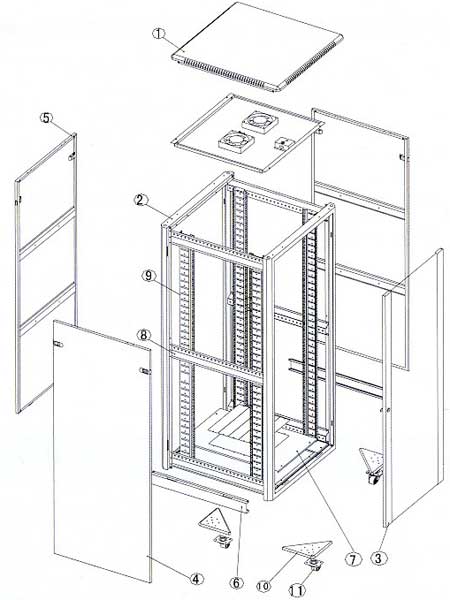

Main structure:
	1. Top cover 2. Fan unit 3. Rear door 4. Frame 5. Mounting rail 6. Mouning angle 7. Side door 8. Horizintal rail 9. Panel for castor 10. Castor 11. Bottom plate 12. Front door
Main dimension:

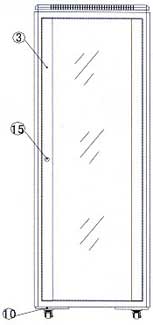

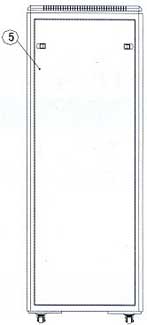

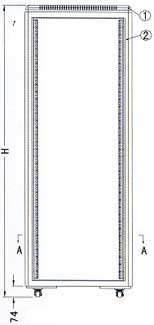

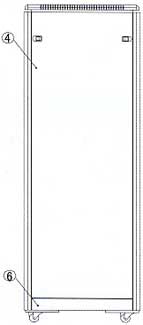

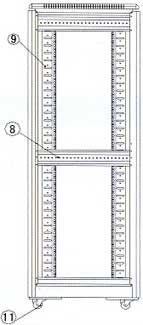

Front (without front door) Front Side Without side door Back A-A Section Top Mounting dimension
