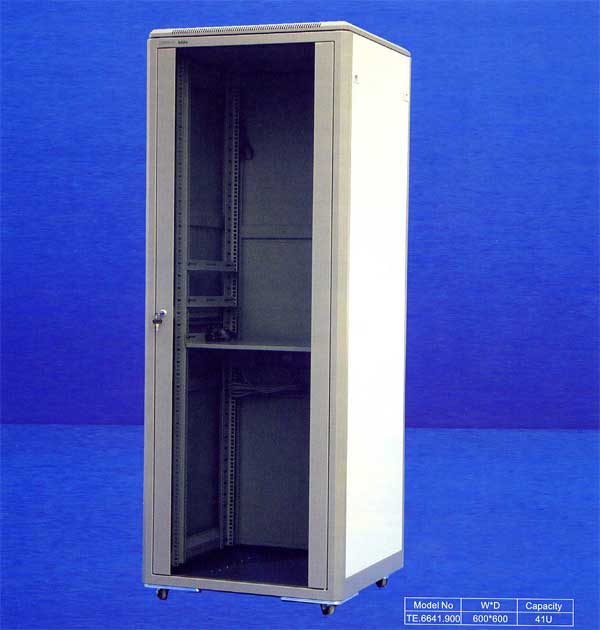

   TE Network Cabinets

Standard:   Material:
  • Comply with ANSI/EIA RS-310-D,
     IEC297-2, DIN41491; PART 1,
     DIN41491; PART 7,
     GB/T36047.2-92 standard
  • SPCC cold rolled steel
     Thickness: mounting rail 1.5mm,
     Front and front border door 1.2mm
     others: 0.8mm
Feature: Surface finish:
  • Simple structure, easy operating,
     exquisite design and precise
     dimension
  • Degreasing, pickling, phosphoric,
     powder coat
  • Disassembled structure, around 1/3 Loading capacity:
     ~1/2 of the original assembled
     volume when disassembled
  • Tempered glass door with popular
     gray color
  • Feet and castor available at the same
     time
  • Removable side " back door, easy to
     install and maintain, lock optional
  • 120mm cooling fan optional
  • Lockable bottom cable entrance,
     adjustable entrance sizes
  • Various optional accessories
  • Static loading: 300Kg
