ZH Double-section Wall-mounted Cabinets

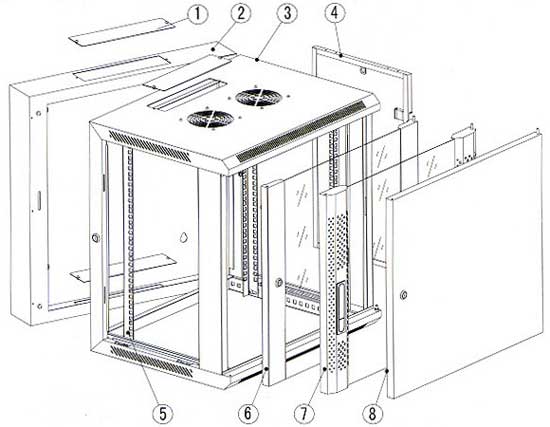

Main structure:
	1. Cable entrance cover 2. Back part 3. Frame 4. Side door 5. Mounting rail 6. Toughed glass door 7. Toughed glass door     with vented borders 8. Steel door 9. Cooling fan
Main dimension:
Mounting dimension Back Enlarge part B Right Toughed glass door (front) Left Front/bottom mounting rail (removable) Top A-A Section
