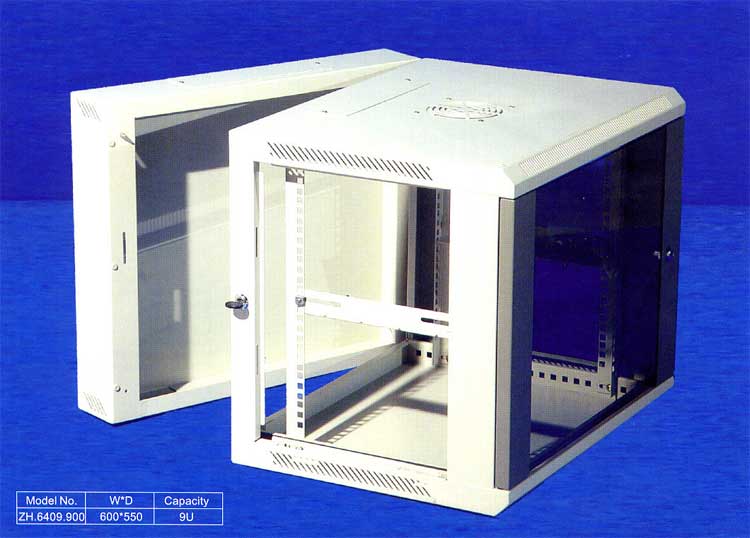

   ZH Double-section Wall-mounted Cabinets


Standard:
  • Comply with ANSI/EIA RS-310-D, DIN41497 part 1, IEC297-2, DIN41494 part 7, GB/T3047.2-92 standard

Feature:
  • Double section welded frame structure
  • Easy operation and maintaining at the back
  • 19" standard installation
  • Removable side doors, side locks are optional, easy installing and maintaining
  • Cable entrances of top and bottom plate
  • 120mm fan optional
  • Turning angle of front door is above 120 degrees
  • Turning angle of rear door is above 90 degrees
  • Turning angle of front door is above 120 degrees

Loading capacity:
  • 60Kg

Degree of protection:
  • IP20

Material:
  • SPCC cold rolled steel
  • Thickness: Mounting rail: 1.5mm, others: 1.2mm

Surface finish:
  • Degreasing, pickling, phosphoric, powder coat

No side door lock (standard)

Side door lock (optional)

Adjustable mounting rails
