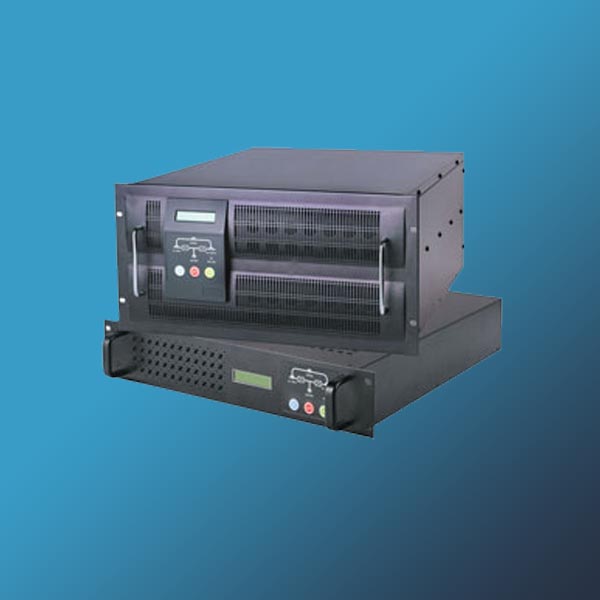

G3K19
UPS monofazic ONLINE, 3000VA, rack mountable 19", 2U, carcasa acumulatori externi 4U, acumulatori inclusi
Features:
• 19 inch Rack-mount
• High frequency and dual conversion on-line technology
• Advanced PFC technology
• True sine wave output with less than 3% THD
• Self-diagnosis when UPS startup
• Advanced battery management(ABM)
• Cold start feature(DC power on )
• Automatically charging batteries in UPS off mode
• Lightning and surge protections(surge energy rating 1050 Joules)
• Short circuit and overload protections
• Fan speed automatically changes as load varies
• Optional external battery pack
• EMI/RFI noise filter
• RS232
• Shutdown & restart schedule
Specifications:
| Model | G1K19 | G2K19 | G3K19 | G6K19 |
| Capacity (Linear Load) | 1KVA 700W | 2KVA 1400W | 3KVA 2100W | 6KVA 4200W |
| Input Voltage Range | Half-Load 120-300VAC, Full-Load 165V-276VAC | 176V~290VAC | ||
| Frequency Range | 45.5Hz~54.5Hz | |||
| Output Voltage | 220V±3% | |||
| Output Frequency | 50Hz±0.5Hz | |||
| Distortion | <3%(Linear Load); <5%(Non-linear Load) | |||
| Output Waveform | True Sine Wave | |||
| Ouerload Capability | 110%~130%: Switch to Bypass after 1Min; 130%: Shut down after 1s. | 105%~130%: 5Mins; >130% :1s. | ||
| Battery Voltage | 36VDC | 96VDC | 240VDC | |
| Crest Factor | 3:1 | |||
| LCD and LED | Utility, Inverter, Bypass, Battery, Load, Battery Mode, Frequency, UPS Fault Indicator | |||
| Charge Time | Charging Up to 90%, ≤8 Hours | |||
| Audible Alarm-Battery Discharge | Utility Failure, Beep/4s; Battery Low, Beep/1s | |||
| EMC | 50091, 9254 | |||
| UPS Abnormal | Continuous Beep and Red LED on | |||
| Output Short Circuit | Shut down | |||
| Ambient Temperature | 0°C~40°C | |||
| Humidity | 10%~90% | |||
| Weight(Kg) | 9.2/14.5KG | 12.8KG | 13.6KG | 33.17KG(Wooden Box) |
| Dimension(WxDxH)mm | 548x470x177 | 548x504x177 | 670x570x295 | |
