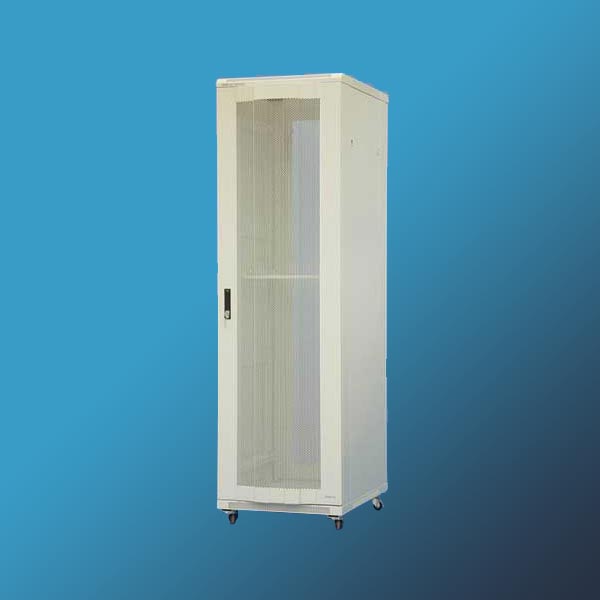

TD-Series
Rack 19", usa metal perforat fata / spate, laterale detasabile
Specifications
• Comply with ANSI/EIA RS-310-D, DIN41497 part 1, IEC297-2, DIN41494 part 7, GB/T3047.2-92 standards
• Compatible with 19-inch standard, metric standard and ETSI standard
Features
• Exquisite design with precision dimensions and craftsmanship
• Color: computer gray or black
• Arc reticular high-density vented front/vented rear doors enable ventilation and reliable operation
• Swiveling wheels and legs can be jointly installed to withstand up to 800kg maximum carrying capacity and 350kg mobile carrying capacity
• Several lockable wiring holes on top/bottom, size of the large hole at the bottom adjustable
• Easy-to-disassemble front/rear/left/right doors enable convenient operation from any side of the cabinet
• Optional installation of base enables the cabinet to stay in a fixed position while meeting requirements of under-base wiring/ventilation
• Linkage cabinet, full series of optional accessories
• Perforated plates glass front door for multi purposes
Dimensiuni disponibile:
TD 6632 600x600 - Network Cabinet
W*D(mm) : 600*600
U : 32U
TD 6642 600x600 - Network Cabinet
W*D(mm) : 600*600
U : 42U
TD 6842 - Network Cabinet
W*D(mm) : 600*800
U : 42U
