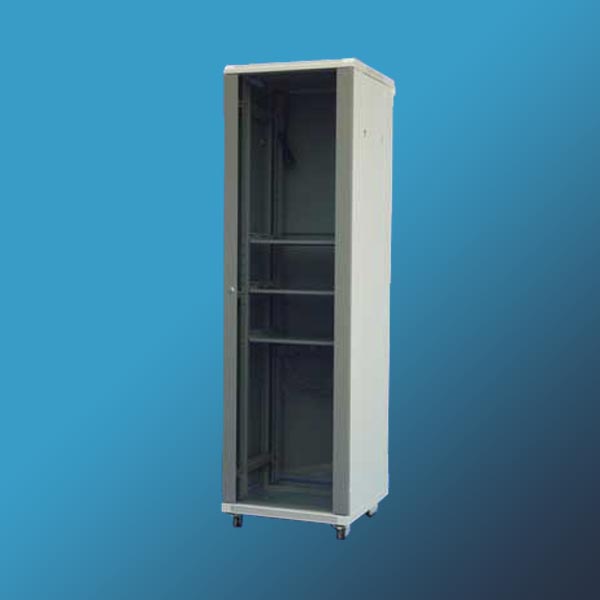

T2 SERIES (NETWORK CABINETS)

T2 SERIES (NETWORK CABINETS)
T-Series

Rack 19", usa fata sticla / spate metalica, laterale detasabile
 Specifications
 • STANDARDS Meet ANSI/EIA RS-310-D, DIN41491, PART1, IEC297, PRAT7,GB/T3047.2-42 requirement Compatible with 19” International Standard, the ETSI Standard

 Features
 • Steel Frame
 • Vented front door and rear door accelerate the convection inside enclosure
 • Smoked Plexiglas front door
 • Removable side panels
 • Leveling feet or castors, Max. Static load 800Kg, Max. Dynamic load 350Kg

 MATERIALS:
 • SPCC high-quality cold roll steel
 • Thickness: Mounting Rails 2.0mm, others 1.2mm
 • Surface Treatment: Degreasing, rustproof, Phosphoric Spraying

 APPLICATION:
 • For LAN Construction, Modems, Industrial Controlling, Lighting Control, Monitor Equipments,etc.
 • Compatible with 19" standard equipments, metric’s standard equipment

Dimensiuni disponibile:
T2 6618 - Network Cabinet
 W*D(mm) : 600*600
 U : 18U
T2 6627 - Network Cabinet
 W*D(mm) : 600*600
 U : 27U
T2 6637 - Network Cabinet
 W*D(mm) : 600*600
 U : 37U
T2 6642 - Network Cabinet
 W*D(mm) : 600*600
 U : 42U
T2 6647 - Network Cabinet
 W*D(mm) : 600*600
 U : 47U
T2 6847 - Network Cabinet
 W*D(mm) : 600*800
 U : 47U
