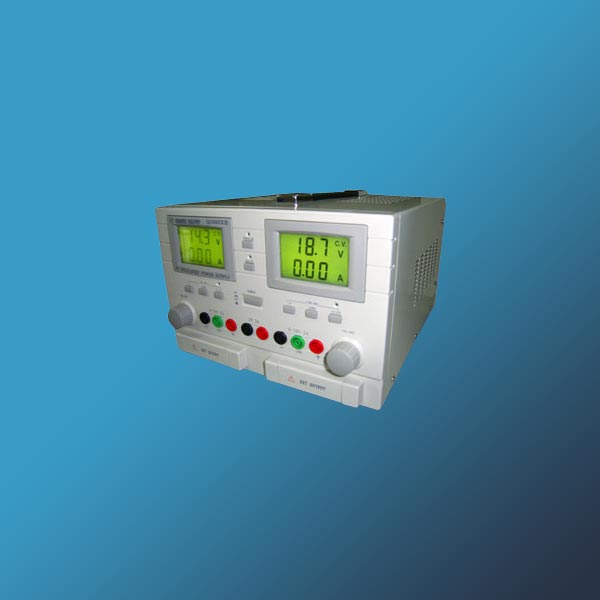

QJ-3005 X3
Sursa stabilizata cu tensiune reglabila 0-30V, 3 iesiri (2 iesiri reglabile, 1 iesire fixa 5V, 3 A)
Features:
• It adopts SMD adhesive Sheet element technology
• Liquid crystal displays voltage and current
• Wanton Choice Of green, yellow liquid crvstal back light
• Voltaqe & current stabilizing automatic conversion
• Multi-loop high precision Voltage regulation
• Stepped current regulation
• Automatic work tracking by series or parallel connection means
• Can be full-load continuous operation
Indexes:
• Ripple & noise:CV <=0.5mV
• Load effect:CV<=1x10e(-5)+2mV
• Bluk:280 x 180 x 260
• Weight:10.2-13Kg
Dual output:
Voltage: 0-30V
Current: 0-5A
Field output: 5V 3A
