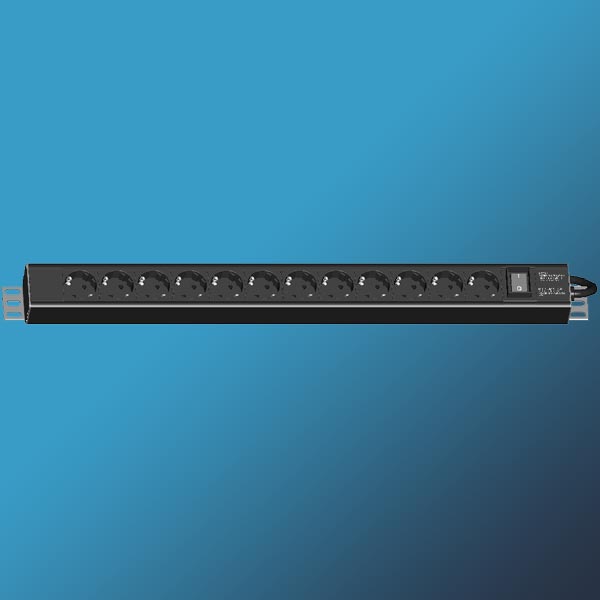

KMB 12-19
Unitate 12 prize standarunitate 12 prize standard german, rack mountable, prindere verticala, intrerupatord german
| Specifications: | |
|---|---|
| Product Name | Power Distribution Unit for Cabinet |
| Rating voltage | 250VAC 50/60Hz |
| Rating Current | 16A |
| Max. Power | 4000W |
| Safety Authentication | CE |
| Socket Type | DIN49440 Socket |
| Socket Quantity | 12 |
| Bracket Install | Frontal installation |
| Cable with plug | DIN49441 16A plug |
| Control Function | Master switch |
| Protection Function | No protecting function |
| Case | Black |
| Cable Specification | 3 x 1.5 mm2 x 3M |
| Dimensions | 734 x 44.4 x 62 mm (LxWxH) |
| Mounting Length | 706 mm |
| Case Length | 678 mm |
| Fittings | 2pcs Ø6×16mm cross bolt, 2pcs M6 float nut |
