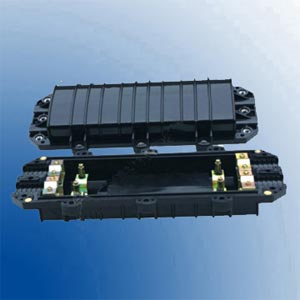

Fiber Optic Splice Enclosure 4ways, Maximum Capacity of 96 cores.
Dimension( LxWxH): 435mm x 190mm x 120mm
Max.Capacity: 96 bundle fiber
Passageway: 4 ways
Maximum cable diameter: φ20
Minimum cable diameter: φ10
Features:
High strength engineering plastic with age resister
High quality stainless steel bolt and pothook
Fusion splicing plate
Complete accessories
Performance:
Workability
Hermetically reliability
Repeat open convenience
High strength Able to work in the bad circumstance normally.
Grounding protect reliability
guarantee the curvature radius≥40mm
Easy to operation and maintenance
Application
In Fiber access, it is designated for fiber termination, protection and distribution
Specification
Operating temperature: 40°C ~ 60°C
Atmosphere pressure: 70~106KPa
Resist pull: >1000N
Resist pressure : >2000N/10cm2pressure, time 1min
Insulated Resistance: 2x104MΩ
Dielectric strength: 15KV (DC)/1 min spark-over and no flying arc.
