Width 600mm TS Network Cabinets
|
 |
| |
| Main parts: |
|
|
|
|

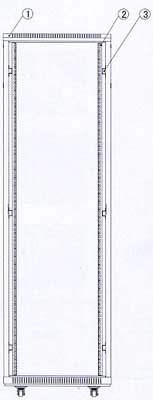

| Front (without front door) |

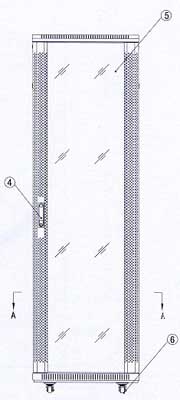

Front |

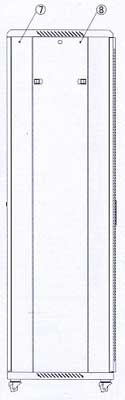

Side |

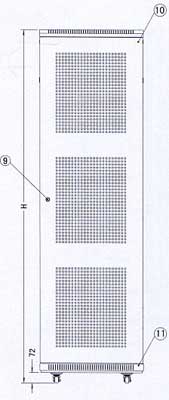

Back |
|
|
|
|
| Mounting dimension |
Top |
A-A Section |
|
|
| |
| Main parts : |
| S/N |
Specification |
Quantity |
Unit |
Material |
Surface finish |
Remark |
| 1 |
Top cover |
1 |
Pieces |
SPCC cold rolled steel t1.2 |
Powder coat |
--- |
| 2 |
Mounting rail |
4 |
Piece |
SPCC cold rolled steel t2.0 |
Powder coat |
--- |
| 3 |
Mounting angle |
6 |
Piece |
SPCC cold steel t1.5 |
Powder coat |
4pcs for lower 32U |
| 4 |
Spring lock |
1 |
Piece |
--- |
Black |
2 keys each |
| 5 |
Tempered glass front door |
1 |
Piece |
Tempered glass/t1.2 SPCC |
Powder coat |
Round vented border |
| 6 |
2" castor |
4 |
Piece |
--- |
--- |
--- |
| 7 |
Frame |
2 |
Piece |
SPCC cold rolled steel t1.2 |
Powder coat |
--- |
| 8 |
Side door |
2 |
Piece |
SPCC cold rolled steel t1.2 |
Powder coat |
--- |
| 9 |
Small round lock |
1 |
Piece |
--- |
Nickel coat |
2 keys each |
| 10 |
Rear square-hole door |
1 |
Piece |
SPCC cold rolled steel t1.2 |
Powder coat |
Square vent |
| 11 |
Bottom cover |
1 |
Piece |
SPCC cold rolled steel t1.2 |
Powder coat |
--- |
| 12 |
M6 B-head screw |
20 |
Piece |
Steel |
Color zinc |
40 sets for upper 32U |
| 13 |
M6 square nut |
20 |
Piece |
Steel |
Color zinc |
40 sets for upper 32U |
| 14 |
Inner 6-angle wrench |
1 |
Piece |
Steel |
Black |
--- |
| 15 |
M12 feet |
4 |
Piece |
--- |
--- |
--- |
|
|
|
