WM Single Section Wall-mounted Cabinets

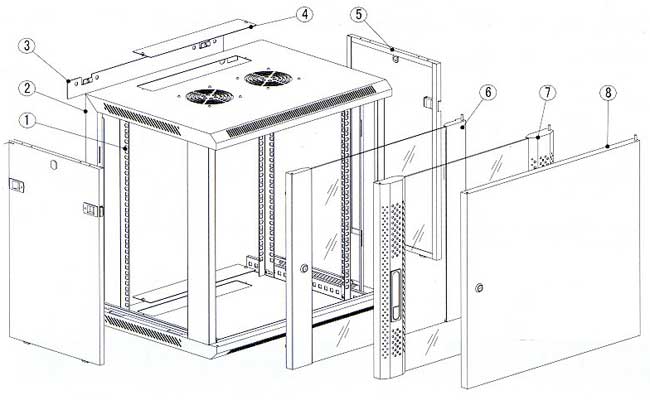

Main structure:
	1. Mounting rail 2. Frame 3. Mounting panel 4. Cable entrance cover 5. Side door 6. Toughed glass door 7. Toughed glass door     with vented borders 8. Steel doors
Main dimension:
Front (toughed glass door) Side Back (wall-mounted hole size) Top Front (without front door) A-A Section Mounting dimension
